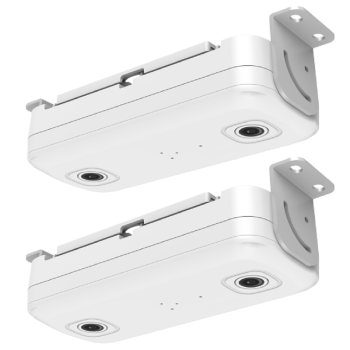

PC16 2-Channel Standalone AI Passenger Counter
- group name
- APC (AI Passenger Counter)
- Min Order
- 1 piece
- brand name
- AlwayCare Commercial Fleet Safety Manufacturer
- model
- PC16
- Acceptable payment methods
- T/T, PayPal, Westem Union, Cash
- update time
- Mon, 17 Aug 2026 16:15:39 GMT
Paramtents
Video Output VGA
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Optional I/O or RS232
Wireless Communication 4G or Wifi
Storage 512GB SD Card
Video Encoding H.264/H.265
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
-
Min Order1 piece
Briefing
PC16 is a standalone 2-channel AI passenger counter with 4G, GPS/BeiDou and CMS synchronization.
Detailed
PC16 · AI passenger counting
What is PC16?
PC16 is a standalone two-channel passenger-counting unit for boarding and alighting statistics. The body lists real-time CMS synchronization, 4G and GPS/BeiDou support without describing a bundled video-recorder workflow.
Buyer overview
Four points to evaluate first
Real-time CMS synchronization
The body lists real-time passenger-count delivery to a fleet platform.
4G connectivity
The current body lists 4G for remote reporting.
GPS/BeiDou listing
Positioning is listed, although the technical table mentions GPS only.
System fit
Define doors, channels and data workflow
Map every counting channel to a real doorway or zone, then document network, positioning, platform, storage and reporting responsibilities.
Counting decision
Confirm door width, mounting height, passenger direction, peak crowding, lighting and expected count output.
Integration decision
Confirm power, interfaces, antennas, SIM or Wi-Fi, CMS access, data retention and commissioning scope.
Current structured record
Technical specifications
| Satellite positioning | GPS and BeiDou dual mode |
|---|---|
| Optional interface | I/O or RS232 |
| Wireless communication | 4G or Wi-Fi |
| Operating temperature | -20°C to 70°C |
| Warranty | 15 months |
Use the structured record as the current baseline. Any conflict with older body copy is disclosed below and should be confirmed before ordering.
Preserved from the original page
Existing product and deployment views
Commissioning planning
Validate counts in the real vehicle
Run repeatable boarding and alighting tests at every door across normal and difficult conditions. Agree how exceptions, missing connectivity and manual reconciliation will be handled.
1
Map
Doors, channels and mounting
Connect
Power, network and CMS
Test
Flow, lighting and crowding
Example applications
Where PC16 may fit
Two-door buses
Assign one counting channel per doorway and test simultaneous movement.
Shuttle services
Collect validated boarding and alighting totals with connected reporting.
Standalone retrofit projects
Add counting without assuming a bundled multi-channel MDVR.
Performance, safety and data boundary
The source lists an error rate below 2% without test conditions, so validate door geometry, lighting, passenger flow and occlusion. Structured attributes also list VGA, video encoding and 512GB SD storage, but these do not appear in the standalone body copy and should not be assumed. The body lists GPS/BeiDou while its technical table says GPS only. Confirm hardware, interfaces, network and platform scope in writing.
Buyer questions
PC16 FAQ
Is PC16 a standalone counter?
Yes. The current title and body present it as a standalone two-channel counting device.
Does it include an MDVR?
The body does not describe a bundled MDVR. Confirm any recorder or video requirement separately.
Which positioning system is supported?
The body mentions GPS/BeiDou, while its technical table says GPS. Confirm the supplied positioning module.
Is the below-2% error rate guaranteed?
No test method is provided. Validate the result at each intended doorway and operating condition.
What network is listed?
The body lists 4G; structured attributes say 4G or Wi-Fi. Confirm the selected option.
What privacy planning is needed?
Define lawful use, data minimization, access, retention and security for counting and location records.
Confirm the complete project
Share your vehicle, doors and reporting workflow
AlwayCare can review channel allocation, mounting, connectivity, CMS integration and acceptance-test requirements.
