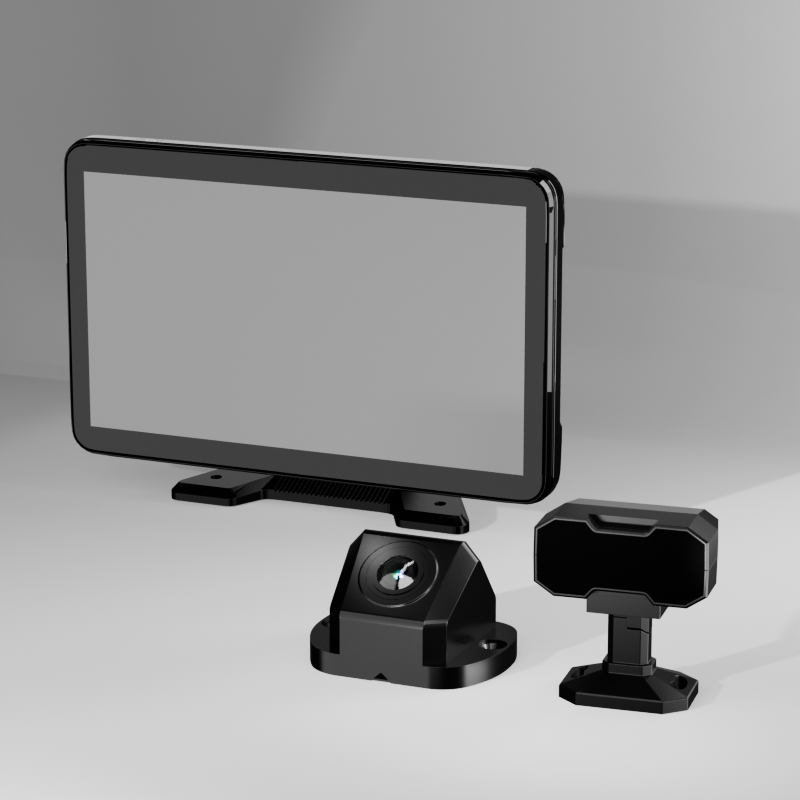

C1005-BSD 6-Channel Blind Spot Monitor with DMS/ADAS
- group name
- BSD (Blind Spot Detection System)
- Min Order
- 1 piece
- brand name
- AlwayCare Commercial Fleet Safety Manufacturer
- model
- C1005-BSD
- Acceptable payment methods
- T/T, PayPal, Westem Union, Cash
- update time
- Tue, 18 Aug 2026 20:31:24 GMT
Paramtents
Voltage 8-36V
Video Record Resolution 1920x1080
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Wireless Communication Wifi
Storage 512GB SD Card
Video Encoding H.264/H.265
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
-
Min Order1 piece
Briefing
C1005-BSD is a 6-channel 1080p fleet monitor combining BSD and DMS alerts with GPS/Beidou positioning.
Detailed
C1005-BSD · BSD monitor
What is C1005-BSD?
C1005-BSD is an 8–36V fleet monitoring device that combines blind-spot detection and driver-monitoring alerts. The current record lists selectable 1, 4, 5 or 6-channel video output, GPS/Beidou positioning, Wi-Fi and SD-card storage; the exact camera set and alarm configuration must be defined for each vehicle.
Buyer overview
Four points to evaluate first
Flexible channel layouts
The body lists support for 1, 4, 5 or 6-channel video output.
Positioning and storage
Structured data lists GPS/Beidou and 512GB SD-card storage.
Wide power input
The structured record lists 8–36V for mixed fleet integration.
System fit
Plan cameras, warnings and receiving equipment together
Define vehicle zones, cameras, detection or stitching functions, display or recorder, alarms, power, storage, network and driver workflow before installation.
Detection and view decision
Map target zones, camera overlap, object types, warning thresholds, night conditions and possible obstructions.
Integration decision
Confirm channels, signal, connectors, alarm outputs, power protection, storage, calibration and platform scope.
Current structured record
Technical specifications
| Voltage | 8-36V |
|---|---|
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Wireless Communication | Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page

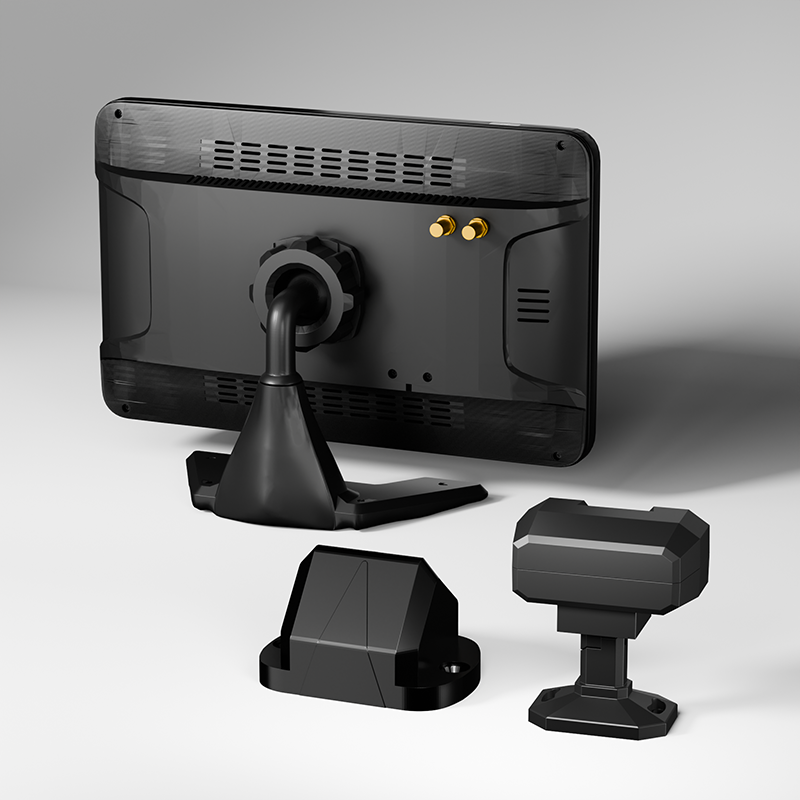

Existing Product and Deployment Views
Commissioning planning
Validate the system on the actual vehicle
Test camera coverage, calibration, object detection, stitched views, alert timing, night conditions, storage and driver response before fleet rollout.
Example applications
Where C1005-BSD may fit
Bus and coach blind zones
Map front, rear, left and right camera zones before selecting the channel layout.
Truck and municipal fleets
Configure DMS alerts, positioning and storage around the operating policy and vehicle duty cycle.
Multi-camera fleet retrofits
Verify cameras, connectors, alarm outputs, display arrangement and power protection as a complete system.
Safety and specification boundary
BSD, DMS and any ADAS-related functions are driver-assistance features, not autonomous control and not a substitute for mirrors, direct observation, training or safe operating procedures. The title mentions ADAS, while the current body clearly details BSD and DMS; confirm the exact ADAS function set. The body says dual 512GB SD cards while structured storage says 512GB SD card, so card count and total capacity require confirmation.
Buyer questions
C1005-BSD FAQ
Which AI functions are clearly listed?
The current body details BSD and DMS alert functions. The exact ADAS feature set should be confirmed separately.
How many video channels are supported?
The body lists selectable 1, 4, 5 or 6-channel output. Confirm the supplied monitor and camera configuration.
What positioning is listed?
Structured data lists GPS and Beidou dual-mode positioning.
How much storage is supported?
Structured data lists 512GB SD-card storage, while the body says dual 512GB cards. Confirm card count and total supported capacity.
Does the system prevent collisions?
No. It provides warnings only; detection can be affected by installation, obstruction, weather, lighting and calibration.
What must be confirmed before installation?
Confirm camera count and zones, alarm outputs, display layout, power, storage, connectors, calibration and driver procedures.
Confirm the complete vehicle system
Share your vehicle, risk zones and required workflow
AlwayCare can review camera layout, detection or stitching functions, alarms, recorder or display, storage, network and installation requirements.
