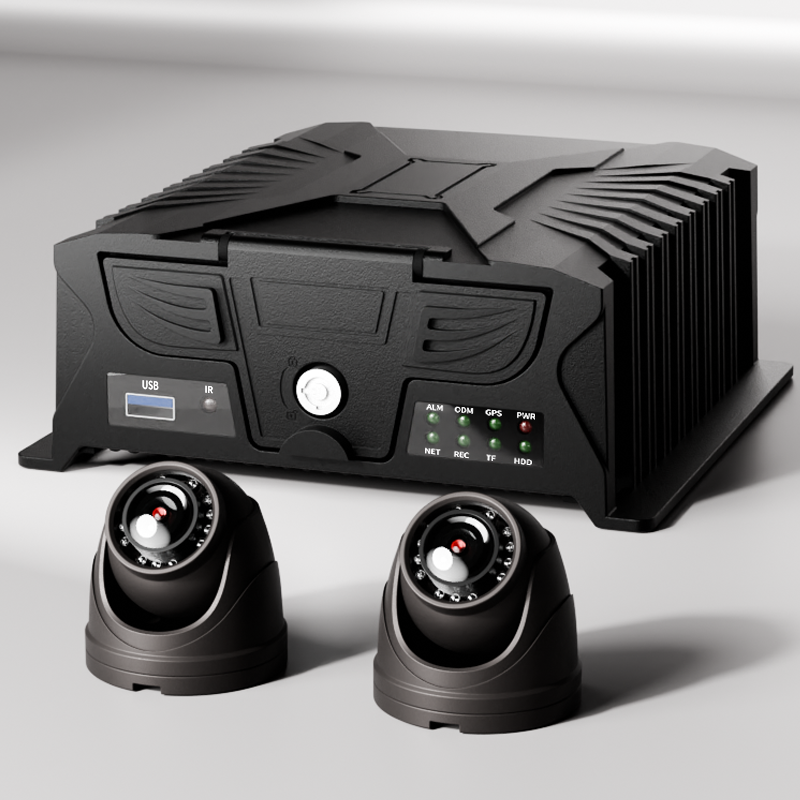

PC23 AI Passenger Counter for School Bus Fleets
- group name
- APC (AI Passenger Counter)
- Min Order
- 1 piece
- brand name
- AlwayCare Commercial Fleet Safety Manufacturer
- model
- PC23
- Acceptable payment methods
- T/T, PayPal, Westem Union, Cash
- update time
- Tue, 18 Aug 2026 19:19:59 GMT
Paramtents
Voltage 8-36V
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Optional I/O or RS232
Wireless Communication 4G or Wifi
Storage 512GB TF Card
Video Encoding H.264/H.265
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
-
Min Order1 piece
Briefing
PC23 is a two-channel AI passenger counter with four-channel video monitoring, GPS/Beidou and 4G or Wi-Fi.
Detailed
PC23 · AI passenger counter
What is PC23?
PC23 combines two passenger-counting channels with four-channel video monitoring for school-bus and fleet operations. The current record lists GPS/Beidou, H.264/H.265, 4G or Wi-Fi, CMS synchronization and optional DMS/ADAS; counting accuracy and storage scope must be confirmed against the intended doors, passenger flow and test conditions.
Buyer overview
Four points to evaluate first
Four-channel monitoring
The body describes two counting channels plus two camera-recording channels.
Fleet data workflow
Positioning, CMS synchronization and 4G or Wi-Fi are listed.
Optional safety modules
DMS/ADAS integration is described as optional, not standard.
System fit
Define zones, interfaces and operating rules
Confirm vehicle or site layout, sensing or camera zones, alerts, power, interfaces, storage or network and operator response before installation.
Performance decision
Document target types, required zone, mounting, environment, test method and acceptable false-alert behavior.
Integration decision
Confirm power, connectors, I/O, display or controller, storage, network, calibration and maintenance scope.
Current structured record
Technical specifications
| Voltage | 8-36V |
|---|---|
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB TF Card |
| Video Encoding | H.264/H.265 |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page
Existing Product and Deployment Views
Existing product video
See the current system demonstration
Commissioning planning
Validate the system in the real operating environment
Test zones, target response, alarm timing, nuisance alerts, visibility or ranging, storage/network workflow and operator response before rollout.
Example applications
Where PC23 may fit
School-bus passenger counts
Define doors, camera placement, boarding direction and exception-handling rules.
Route and occupancy reporting
Confirm CMS synchronization, connectivity, time alignment and reporting workflow.
Combined video and counting
Plan storage, retention, permissions and access controls for recorded video and passenger data.
Safety, performance and data boundary
The body lists an error rate below 2% but provides no test protocol, passenger-flow conditions or exclusion rules, so it is not presented as a universal guarantee. The text about different people does not establish demographic classification and should not be used for decisions about age, race or other sensitive traits. Structured storage lists a 512GB TF card while the body adds a 2TB hard disk. DMS/ADAS are optional. Confirm privacy notices, lawful basis, retention, access controls and local school-bus requirements.
Buyer questions
PC23 FAQ
How many counting channels are listed?
The body lists two passenger-counting channels.
How are the four video channels described?
The body describes two passenger-flow channels plus two camera-recording channels.
Is the below-2% error rate guaranteed?
No. Test conditions are not supplied, so accuracy must be validated for the actual doors and passenger flow.
What storage is supported?
Structured data lists a 512GB TF card, while the body also mentions a 2TB hard disk. Confirm slots, media and tested capacity.
Are DMS and ADAS included?
They are described as optional integrations.
What privacy controls are needed?
Define purpose, notices, lawful basis, retention, user access, security and local requirements for video and passenger data.
Confirm the complete project
Share your vehicle, site, risk zones and workflow
AlwayCare can review sensing or camera layout, alerts, interfaces, storage, network and commissioning requirements.
