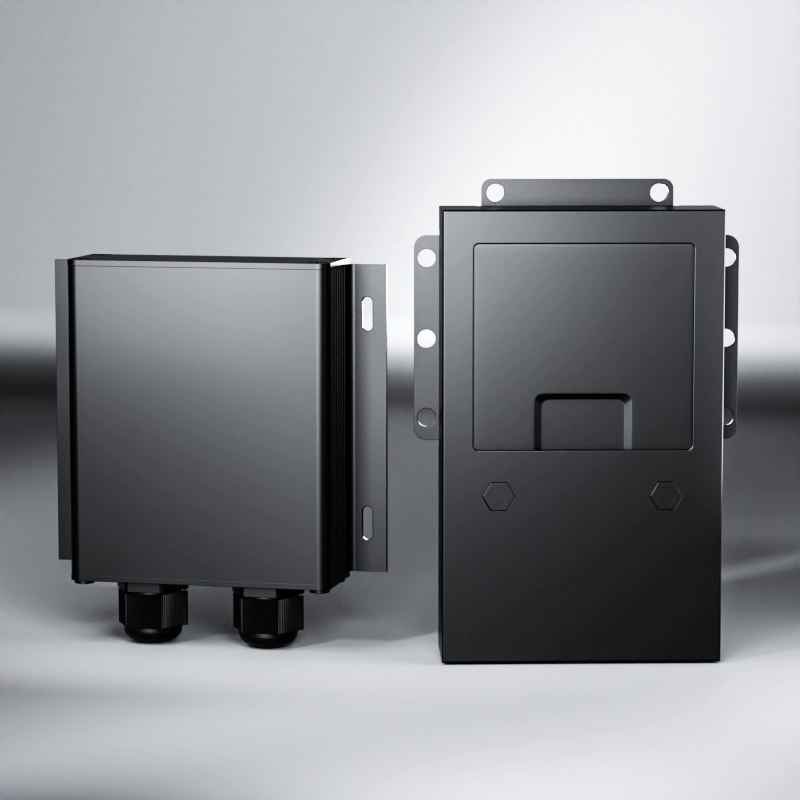

R350 77GHz Radar Collision Warning System for Forklifts
- group name
- Radar Detection System
- Min Order
- 1 piece
- brand name
- AlwayCare Commercial Fleet Safety Manufacturer
- model
- R350
- Acceptable payment methods
- T/T, PayPal, Westem Union, Cash
- update time
- Sat, 15 Aug 2026 20:33:09 GMT
Paramtents
Voltage 12/24V
Optional I/O or RS232
Size 104*95*28mm
Video Encoding H.264/H.265
Application Suitable for All Vehicles
Operating Temperature -40℃ ~ 85℃
Warranty 15 Months
Packging & Delivery
-
Min Order1 piece
Briefing
R350 is a 12/24V 77GHz radar warning system with three alarm zones and a listed 10–40m detection range.
Detailed
R350 · 77GHz radar warning system
What is R350?
R350 is a 12/24V 77GHz millimeter-wave radar warning system for configured vehicle and forklift risk zones. The body lists a 10–40m range, three audio-visual alarm levels and optional I/O or RS232; actual range and object response require site-specific validation.
Buyer overview
Four points to evaluate first
Three alarm zones
The body lists three configurable distance levels with different audio-visual signals.
Listed 10–40m range
This range is body-copy data and must be confirmed for the selected installation.
Integration options
Structured data lists optional I/O or RS232 with 12/24V input.
System fit
Define zones, interfaces and operating rules
Confirm vehicle or site layout, sensing or camera zones, alerts, power, interfaces, storage or network and operator response before installation.
Performance decision
Document target types, required zone, mounting, environment, test method and acceptable false-alert behavior.
Integration decision
Confirm power, connectors, I/O, display or controller, storage, network, calibration and maintenance scope.
Current structured record
Technical specifications
| Voltage | 12/24V |
|---|---|
| Optional | I/O or RS232 |
| Size | 104*95*28mm |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -40℃ ~ 85℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page
Existing Product and Deployment Views
Existing product video
See the current system demonstration
Commissioning planning
Validate the system in the real operating environment
Test zones, target response, alarm timing, nuisance alerts, visibility or ranging, storage/network workflow and operator response before rollout.
Example applications
Where R350 may fit
Forklift warning zones
Set practical near/mid/far zones around operating speed, aisles and pedestrian routes.
Mining and industrial fleets
Validate range, target response, weather behavior and alarm escalation in the real site.
Vehicle interface projects
Review controller and braking-interface logic through an approved engineering and safety process.
Safety, performance and data boundary
R350 provides warnings and does not guarantee collision avoidance. The body mentions connection to an automotive braking system, but this does not establish automatic braking, functional-safety compliance or vehicle approval. Any control interface requires independent engineering, risk assessment and validation. The 10–40m range, all-weather wording, object types, waterproofing and shockproofing are body-only claims requiring project confirmation.
Buyer questions
R350 FAQ
What frequency is listed?
The current body lists 77GHz millimeter-wave radar.
What range is listed?
The body lists 10–40m. Actual usable range depends on target, angle, mounting, environment and configuration.
How many alarm levels are listed?
Three distance levels with different audio-visual signals are described.
Does R350 automatically brake the vehicle?
Automatic braking is not established. Any vehicle-control connection requires approved engineering and safety validation.
Which interfaces are listed?
Structured data lists optional I/O or RS232.
What should be validated on site?
Detection zones, target response, nuisance alerts, alarm timing, mounting, weather behavior, interfaces and operator procedure.
Confirm the complete project
Share your vehicle, site, risk zones and workflow
AlwayCare can review sensing or camera layout, alerts, interfaces, storage, network and commissioning requirements.
