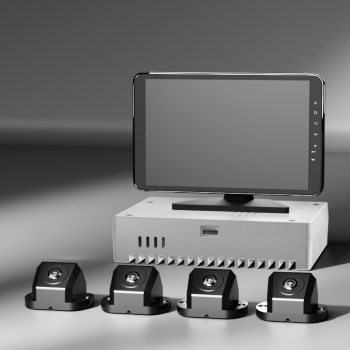

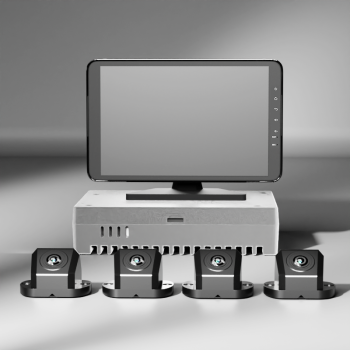

360° Around View Monitoring | with 4-CH 3D 360° Vehicle Collision Detection | M360-1 | Safe Driving Kit for Fleets

group name: AVM (360° Around View Monitor)

Min Order: 1 piece

brand name: AlwayCare Commercial Fleet Safety Manufacturer

model: M360-1

Acceptable payment methods: T/T, PayPal, Westem Union, Cash

update time: Fri, 16 May 2025 23:56:28 GMT

contact supplier

Paramtents

Voltage 12/24V
Video Record Resolution 1920x1080
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Optional I/O or RS232
Wireless Communication 4G or Wifi
Storage 512GB TF Card
Size 98*88*35mm
Video Encoding H.264/H.265
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Warranty 2 years

Packging & Delivery

Min Order1 piece

Briefing

Driver monitoring & fleet management platform with real-time alerts, video analytics. Compatible with existing MDVR/GPS or standalone systems

Detailed

4CH 3D 360 MDVR

● Earthquake-resistant Design: Strong earthquake resistance, flexible and convenient installation, powerful functions and high reliability.

● Exclusive Pre-installed Vehicle System: ensure data security, stability and integrity.

● BSD & 3D 360°AVM: 4/5/8/9/12CH optional, AI algorithm MDVR can detect 360° pedestrians and vehicles in front, side and rear of the vehicle in real time to avoid accidents caused by blind spots.

● APC: With passenger flow statistics function: using deep learning technology, it can realize real-time recognition and motion tracking of people in the collected images, so as to achieve high-precision passenger flow statistics

● H.264/H.265: support dual compression, improve the utilization of storage space and wireless network traffic, and combine AI with ROI processing

● Fleet management: PC/mobile terminal remote real-time monitoring, historical trajectory and video query, dangerous events can be uploaded to the vehicle monitoring platform to achieve efficient fleet management

● GPS/Beidou/4G/WIFI module expansion.

● CMS platform/API:

Support Android/IOS/Web, can display key indicators and alarms in real time, provide multi-language support, suitable for international operations.

Technical Parameters

Item Type:		Fatigue Warning Alarm Device
Power Input		12V/24V
Minimum Working Voltage/Current:		4.75V, 320mA
Maximum Working Voltage/Current:		5.25V, 500mA
Function:		Fatigue Detection and Alarm；Distraction Detection with Alarm；1-2 Second Alarm Response；60° Detection Angle
Interface:		USB
Working Temperature:		-20℃-60℃

We are a remote management and monitoring of active security systems solution provider please tell us your need and then we can send you the most satisfying drawing.: contact us
