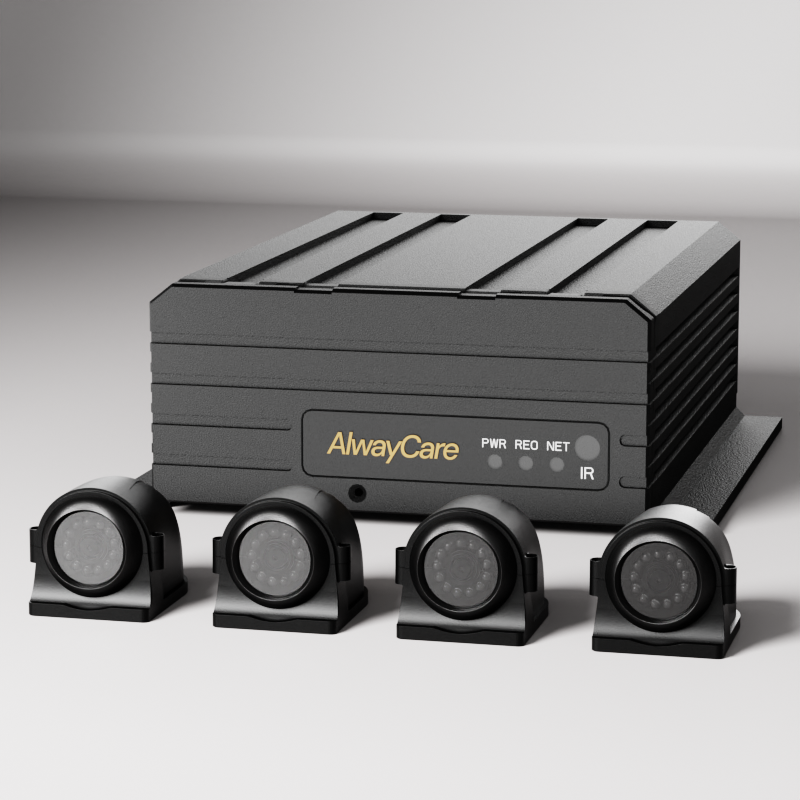

MR910-BSD 4-Channel MDVR with Blind Spot Detection
- group name
- BSD (Blind Spot Detection System)
- Min Order
- 1 piece
- brand name
- AlwayCare Commercial Fleet Safety Manufacturer
- model
- MR910-BSD
- Acceptable payment methods
- T/T, PayPal, Westem Union, Cash
- update time
- Tue, 18 Aug 2026 07:16:48 GMT
Paramtents
Power Input 12/24V
Video Record Resolution 1920x1080
Satellite Positioning Support GPS and BD (Beidou) dual-mode positioning
Optional I/O or RS232
Wireless Communication 4G or Wifi
Storage 512GB SD Card
Video Encoding H.264/H.265
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
-
Min Order1 piece
Briefing
MR910-BSD is a 4-channel 1080p MDVR with BSD, GPS/Beidou, H.264/H.265 and optional 4G or Wi-Fi.
Detailed
MR910-BSD · BSD MDVR
What is MR910-BSD?
MR910-BSD combines a four-channel 1080p mobile DVR with blind-spot warnings, positioning and optional connectivity. The current record lists H.264/H.265, 512GB SD-card storage, GPS/Beidou, 4G or Wi-Fi and optional DMS/ADAS integration; the complete camera, sensor, CMS and subscription scope must be confirmed.
Buyer overview
Four points to evaluate first
BSD warning role
Front, rear, left and right blind-zone warnings are listed for configured cameras.
Positioning and connectivity
GPS/Beidou plus 4G or Wi-Fi are listed, with configuration and service dependencies.
Video and storage baseline
Structured data lists 1080p input, H.264/H.265 and a 512GB SD card.
System fit
Plan cameras, warnings and receiving equipment together
Define vehicle zones, cameras, detection or stitching functions, display or recorder, alarms, power, storage, network and driver workflow before installation.
Detection and view decision
Map target zones, camera overlap, object types, warning thresholds, night conditions and possible obstructions.
Integration decision

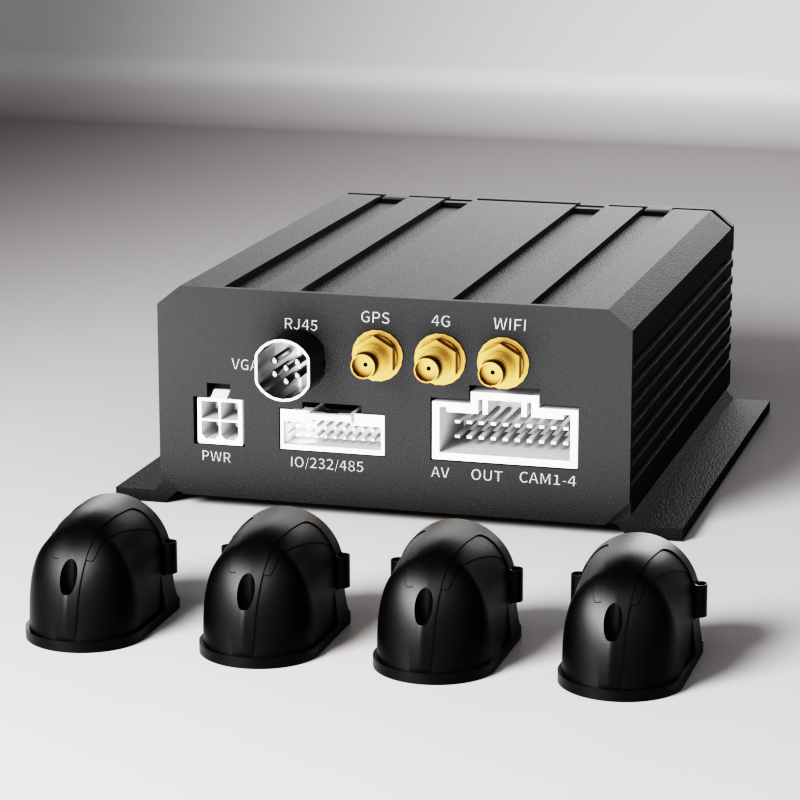

Confirm channels, signal, connectors, alarm outputs, power protection, storage, calibration and platform scope.
Current structured record
Technical specifications
| Power Input | 12/24V |
|---|---|
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page
Existing Product and Deployment Views
Existing product video
See the current system demonstration
Commissioning planning
Validate the system on the actual vehicle
Test camera coverage, calibration, object detection, stitched views, alert timing, night conditions, storage and driver response before fleet rollout.
Example applications
Where MR910-BSD may fit
School bus fleet oversight
Combine multi-camera evidence, positioning and configured BSD alerts within documented operating procedures.
Truck and logistics fleets
Define camera zones, CMS access, data service, storage retention and alarm escalation before rollout.
Mixed commercial fleets
Confirm voltage, connector pinout, cameras, sensors, network bands and platform licensing per vehicle type.
Safety and specification boundary
BSD, optional DMS and optional ADAS are assistance functions, not autonomous control. Remote monitoring depends on configured 4G/Wi-Fi, network coverage, compatible CMS/app, data service and permissions. Sensor integrations such as oil level or tire pressure require separate compatible hardware. Confirm storage retention, privacy, cybersecurity, alert policy and the exact included modules.
Buyer questions
MR910-BSD FAQ
How many channels are listed?
The current body lists four-channel AHD monitoring and recording.
Are DMS and ADAS standard?
The body describes DMS and ADAS as optional integrations. Confirm the ordered configuration.
What wireless communication is listed?
Structured data lists 4G or Wi-Fi. Confirm regional bands, antennas, SIM/data service and platform compatibility.
What storage is listed?
The structured record lists a 512GB SD card. Actual retention depends on channels, bitrate, event settings and recording schedule.
Can it connect to a CMS platform?
The body lists PC/app CMS functions, but server, licensing, network and account scope must be confirmed.
Does BSD guarantee collision avoidance?
No. It provides warnings only and remains dependent on correct cameras, calibration, conditions and driver response.
Confirm the complete vehicle system
Share your vehicle, risk zones and required workflow
AlwayCare can review camera layout, detection or stitching functions, alarms, recorder or display, storage, network and installation requirements.
